HORIZONTAL BALER

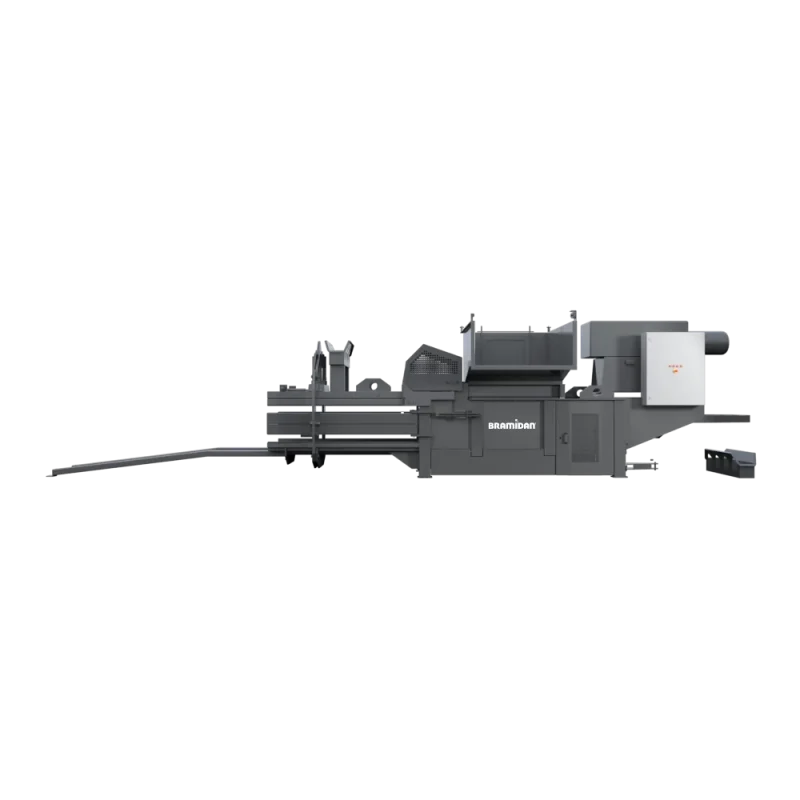

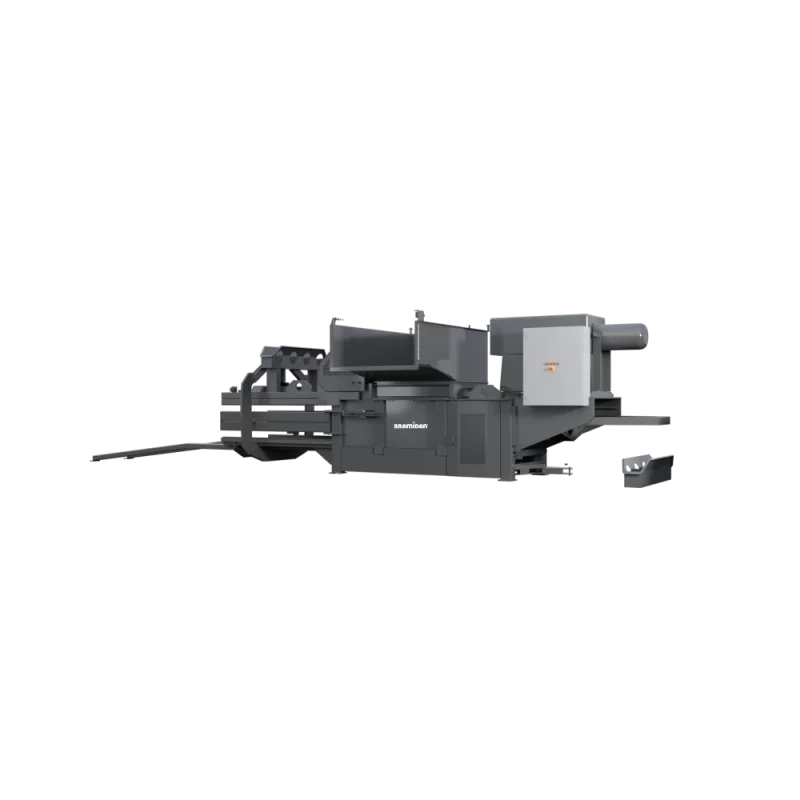

Horizontal baler HC40

The horizontal channel baler is a reliable and easy-to-use solution for continous compaction of large waste volumes.

DOWNLOAD BROCHURE

Add to your quote

HORIZONTAL BALER

Popular options

Wall hopper enables constant baler filling

Ask for Quote

Empty your waste bins easily with a tipping system

Ask for Quote

Use bigger wire rolls and reduce manual wire changing

Ask for Quote

Quote details

HORIZONTAL BALER

Horizontal baler HC40

Overview

How to operate

Safety

Technical specifications

For large needs and limited space

The horizontal balers are suitable if you need an efficient and compact solution with high capacity.

Fully automatic solution

Load the baler continuously and enjoy automatic press cycles and bale tying.

Horizontal balers for extra large waste volumes:

Fully automatic
Compact solution – requires minimal floor space
Continuous loading
Automatic bale tying
Low noise level
Flexible output – adjustable bale length
Extra wide feed opening

Bale weight cardboard (kg)	250-400
Bale weight plastic foil (kg)	300-450
Press force (t)	40
Waste volume	Large

Waste types

Cardboard

Plastic foil

Waste Volume

Large

BALE SIZE

1200 x 1100 x 750 mm

PRESS FORCE

40 t

BALE WEIGHT

Cardboard (kg) : 250-400
Plastic foil (kg) : 300-450

Product Options

Customize your machine with the perfect product options for your needs

HORIZONTAL BALER HC40

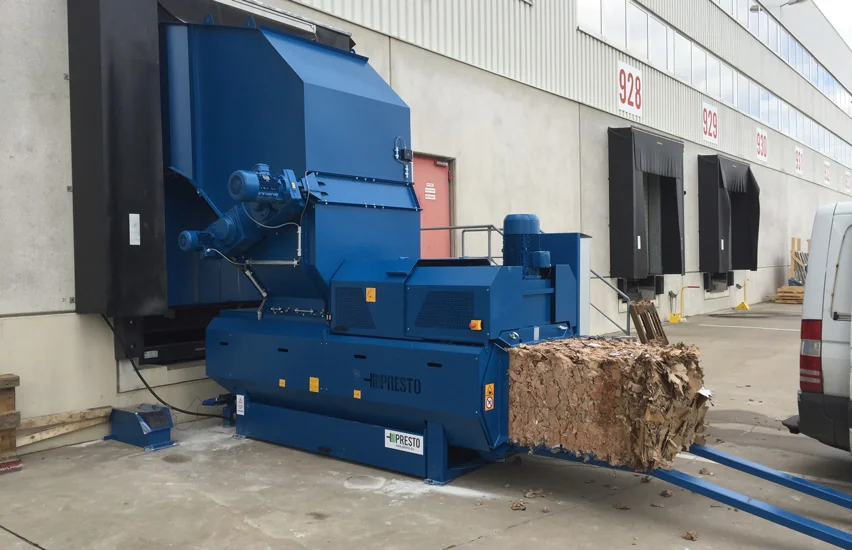

Wall hopper enables constant baler filling

Handle your inside waste more efficiently with a wall hopper. Eliminate going outside and load your waste directly into the baler through the wall.

Ask for Quote

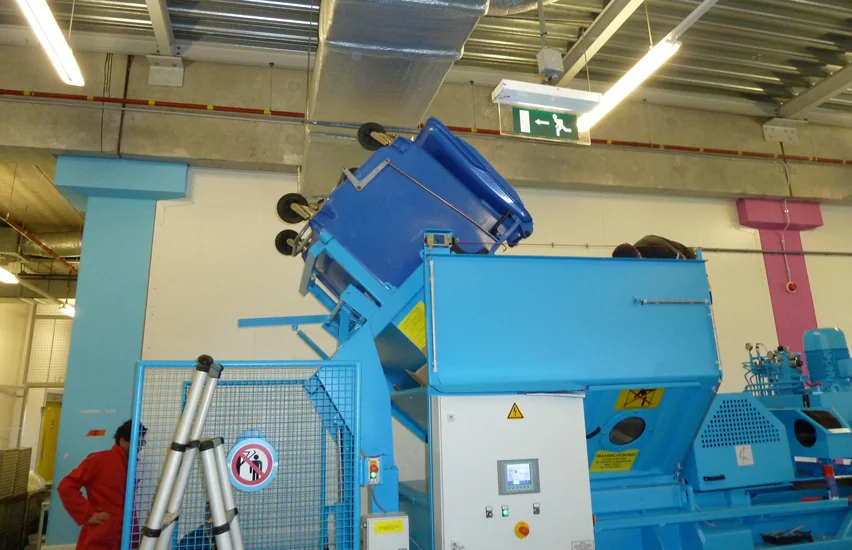

Empty your waste bins easily with a tipping system

Use a tipping system to empty your full waste bin into your horizontal baler. The tipping system comes in integrated, stationary and movable versions.

Ask for Quote

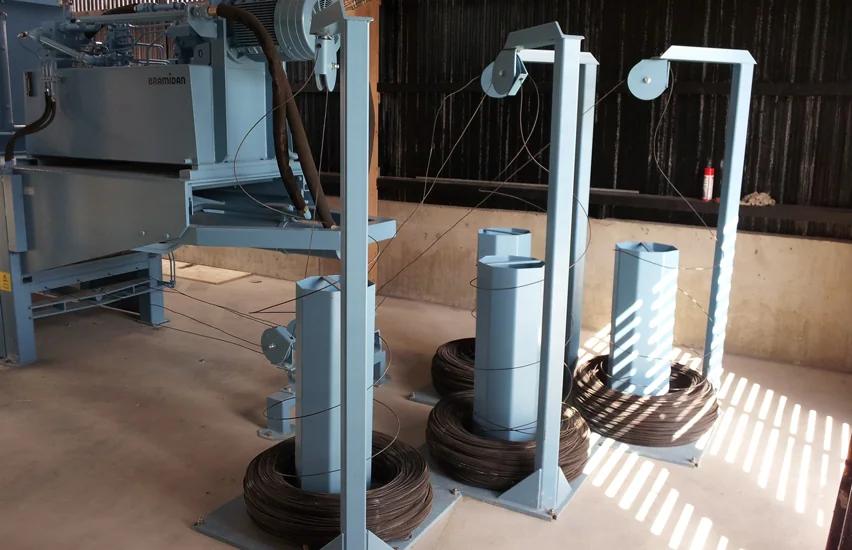

Use bigger wire rolls and reduce manual wire changing

Minimize machine standstill by reducing the frequency of roll changes. Our high-volume wire system lets you install bigger wire rolls up to 500 kg.

Ask for Quote

Monitor and optimise with BRA-IN

Gain full insight into your waste handling with BRA-IN – our intelligent IoT solution for compactors and balers.

With real-time data and automatic notifications, you can make better decisions, reduce operating costs, and document your environmental efforts.

BRA-IN stands for Bramidan Intelligence and connects your equipment directly to a user-friendly platform – so you can monitor fill levels, optimise collections, and schedule maintenance – all in one integrated solution.

Hero BRA-IN - phone and tablet and balers and compactors on a map

Heading for loop

FAQ

HORIZONTAL BALER HC40

Most Common Questions & Answers

Where should I install the horizontal baler?

The horizontal baler can be placed both indoors and outdoors. The machine requires a solid foundation e.g. concrete or pavement that can support the weight. If you place the baler outside, we recommend that you place it under a roof to protect it from wear and tear. Our sales consultant will help you identify the best place to install your baler.

What is the biggest difference between vertical and horizontal balers?

Vertical balers are compact, affordable, and ideal for manual operations and moderate volumes of waste such as cardboard and plastic. They compress material from top to bottom and take up minimal space, making them easy to install—especially for smaller businesses or sites with limited space.

Horizontal balers are built to manage larger quantities of waste and offer greater automation. They compress from the side and can be combined with conveyors, shredders, and other automated systems, reducing manual labour and improving operational efficiency. However, they require more space and a higher investment.

How large are the bales produced in a horizontal baler?

The size of the bales depends on the channel baler. Have look at the product specifications here. Bale weights vary depending on channel baler model and material. Expect bale weights between 200 and 300 kg in the smallest model and 350 and 450 kg in the largest model. In general, plastic gives the heaviest bales and cardboard and paper the lightest bales.

Is a horizontal baler easy to operate?

It is very easy to operate, but training in correct use of the machine is necessary. We recommend appointing one employee as ‘super user’. The ‘super user’ can train other employees and supervise their use of the machine to avoid accidents and machine malfunction. The ‘super user’ should also be trained in and be responsible for maintenance and light machine repairs.

How do I fill my waste material into the horizontal baler?

We offer a variety of filling options for our horizontal balers depending on your needs, like filling from both sides, from the back, and from the top. Both manual filling and automatic filling is possible. Please consult with our sales team to learn about the filling options.

What is the cycle time of a horizontal baler?

The cycle time is the time from the press starts till it has returned into position again, and you can continue fill in more waste. The cycle time depends on the machine type and can be as short as 24 secs.

What can I compress in a horizontal baler?

A horizontal baler can be used to compress soft materials such as cardboard, paper, and shredded PET.

How is the finished bale tied off in a horizontal channel baler?

All horizontal channel balers have automatic bale tying and bale length can be adjusted to your needs and preferences.

Did you find an answer to your questions? If not visit our FAQ universe.
