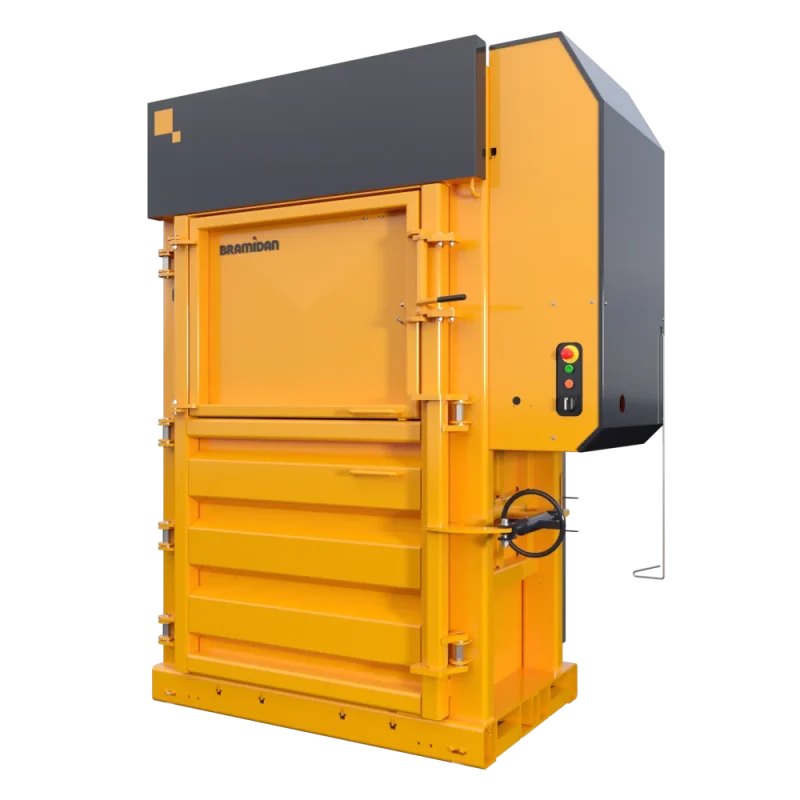

VERTICAL BALER
Baler X50
The X50 is a high-quality machine designed with focus on reliability and superior press force. With this baler you get a safe and functional working environment.
Colour
RAL 1007
RAL 3016
RAL 5002
RAL 5017
RAL 5021
RAL 6018
RAL 6032
RAL 7015
RAL 7035
RAL 9003
*Bramidan yellow at no extra cost. Other colors can be ordered at an additional cost.
Add to your quote
VERTICAL BALER
Baler X50
Keep total overview of the exact number of bales produced, machine run-time, machine localization, etc. and automatically alert your waste collector about bales ready for pick-up.
Keep an eye on your balers with BRA-IN
Have your baler painted in a RAL colour of your choice. Machine hood, press plate, and spindle are exempted from custom colouring.
Personalize your baler with custom colour

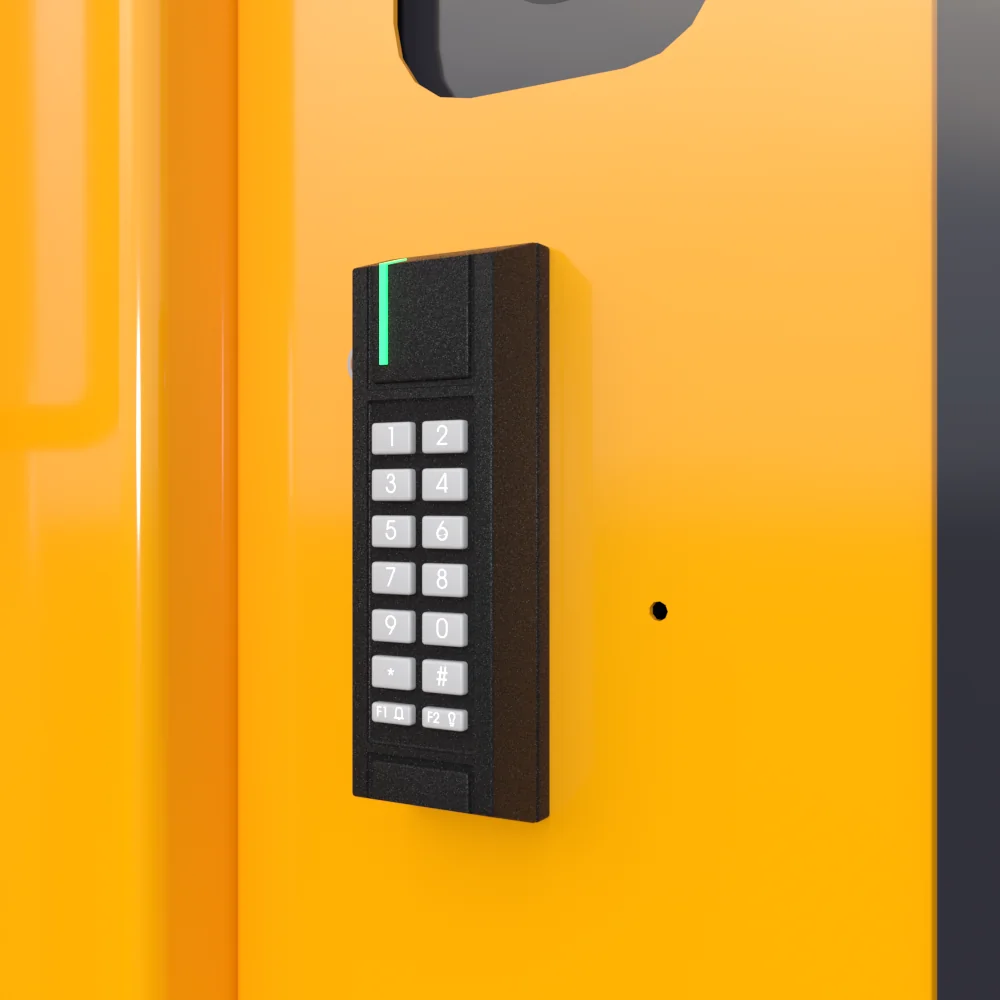

Enable baler loading but restrict access to run press cycles. Permission to run a press cycle is granted with a personal code or a key tag.
Restrict who can use your baler with an auto lock

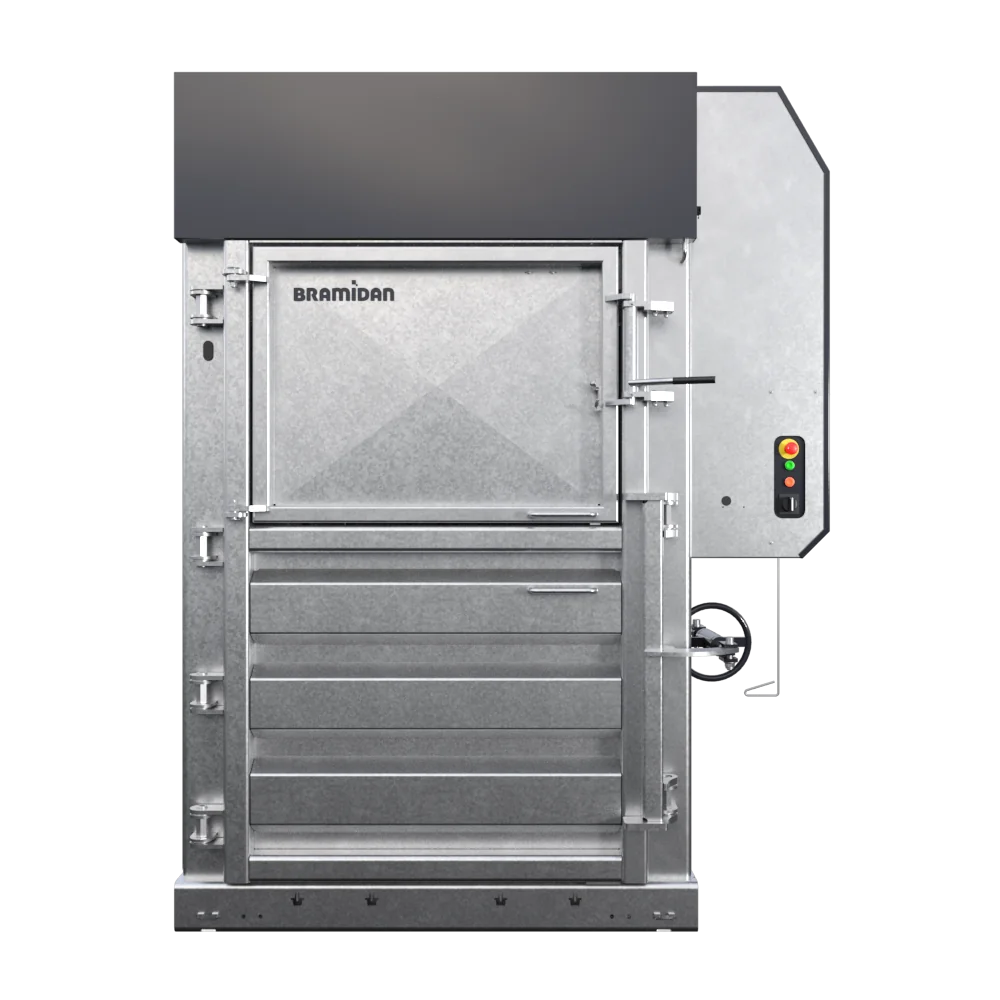

Make your baler more resistant with a galvanized surface. The galvanized surface is suitable for challenging waste or wet environments.
Galvanized surface makes your baler environment resistant
Quote details
VERTICAL BALER
Baler X50
Overview
How to operate
Safety
Technical specifications
Baler for heavy duty compaction
Efficient and time-saving handling of recyclable industry by-products. This baler handles both paper, hard plastic (PET), soft expandable plastic, aluminium and tin cans.
Large bale production and operational reliability
With this baler, you produce large bales. The hydraulic system gives the machine high capacity and a long machine lifetime. The unique design means easy access to electrical parts for fast repair.
X50 – Industrial strength baler:
- Efficient compaction of most types of materials
- High compression ratio – also of expandable materials
- Minimum material expansion between press cycles
- Flexible tying options with plastic straps or steel wire
- Short press cycle
- Easy access to electrical parts for repair and maintenance
- Moving parts are protected inside the machine
- Powder Coating provides durable finish in many colors
How does the X50 baler work?
Time-saving and easy waste handling
- Load your recyclables into vertical baler.
- A full-bale light tells you when the baler is full.
- Tie off and eject the compacted bale.
- Remove the bale with a pallet jack for storage untill collection.
The X50 baler is safe and easy to operate:
Our machnies has the highestlevel of safety – don’t settle with less!
| Bale weight cardboard (kg) | 350-450 |
| Bale weight plastic foil (kg) | 400-500 |
| Press force (t) | 50 |
| Power supply | 3x400V 50Hz 16A |
| Motor (kW) | 5.5 |
| Noise Level (dB) | 62-64 |
| Cycle time avg. (sec) | 22 |
| Dimensions WxDxH (mm) | 1965 x 1365 x 2540 |
| Weight (kg) | 2435 |
| Feed opening WxH (mm) | 1090 x 610 |
| Filling height (mm) | 1210 |
| Chamber height (mm) | 1710 |
| Stroke (mm) | 1210 |
| Number of ties | 4 |
| Type of tying | Twine / Steel wire |
| Full bale light | Yes |
| Bale eject | Automatic |
| Waste volume | Large |
Waste Volume
Large
FEED OPENING
1090 x 610 mm
BALE SIZE
1200 x 800 x 1100 mm
PRESS FORCE
50 t
BALE WEIGHT
Cardboard (kg) : 350-450Plastic foil (kg) : 400-500
Get your machine a BRA-IN
Turn your waste data into real operational savings and effective workflows
BRA-IN is a digital mangement system for your balers and compactors that turns waste data into value. It gives you a simple but effective online overview of machine status, performance and service needs.
With real-time insights, automatic notifications and remote service, BRA-IN helps you optimise collections, reduce downtime and lower operating costs.
Heading for loop
Our quiet machines mean a safer working environment
Most balers operate at a noise level of around 70-80 dB.
Bramidan balers are a much quieter alternative. To put this into perspective, a 10 dB reduction makes a significant difference – comparable to moving from the noise of a busy street to the calm of a quiet office. A lower noise level plays a crucial role in creating a safer and more comfortable working environment.
30dB
50dB
75dB
100dB
160dB
X50
62-64 dB
Whisper
Refrigerator
Other balers
Cars on highway
Turbojet engine
FAQ
VERTICAL BALER X50
Most Common Questions & Answers
Can I get a baler with a door that doesn’t open outwards?
We have different door solutions that do not open outwards. The Vertical Door for our B-series balers is manual and opens vertically upwards to give you more space around the baler – and free access to the chamber from both sides.
The Automatic Sliding Door for our X-series balers is fully automatic and opens vertically downwards. It stays open and is an excellent solution for quick and easy filling.
These door types are suitable if you need to place the baler in narrow places.
Can I compact aluminium waste?
Yes, you can compact aluminium waste in our X30 and X50 balers.
To get the tightest bales, it is important that the aluminium is compacted very hard from the very first press cycle. Our X-series balers have long internal cylinders and can reach the bottom of the baler with a very hard press force. This is called a long stroke. The result is optimally compressed aluminium waste, even if the baler is almost empty.
We recommend that you put a layer of cardboard on the top and at the bottom of the bale to keep it stabile. You may also benefit from wrapping plastic film around the finished bale.
Can I compact cans?
Yes, you may use a baler for compacting light metal waste like food cans and aluminium cans.
You need a baler with a relatively high press force to compact empty aluminium cans. It is important that the material is well compacted from the very first press cycle. Our X-series balers, which have cross cylinders with long cylinder strokes, are very suitable for this purpose.
We recommend that you put a layer of cardboard at the bottom and on top of the bale to keep it stable. Sometimes you might also benefit from wrapping the finished bale with plastic film.
What is the biggest difference between vertical and horizontal balers?
Vertical balers are compact, affordable, and ideal for manual operations and moderate volumes of waste such as cardboard and plastic. They compress material from top to bottom and take up minimal space, making them easy to install—especially for smaller businesses or sites with limited space.
Horizontal balers are built to manage larger quantities of waste and offer greater automation. They compress from the side and can be combined with conveyors, shredders, and other automated systems, reducing manual labour and improving operational efficiency. However, they require more space and a higher investment.
Which door type is the most suitable when I need to compact PET bottles?
Our Flap Door is specially developed for handling PET bottles.
The Flap Door works just like a chute for the bottles and makes it easy to throw bottles directly into the baler either separately or in full sacks.
Is it possible to tie the bales with wires instead of polyester strapping?
Yes, both strapping and steel wires can be used to tie the bales. In our small machines, you can only use strapping.
Did you find an answer to your questions? If not visit our FAQ universe.
