VERTICAL BALER

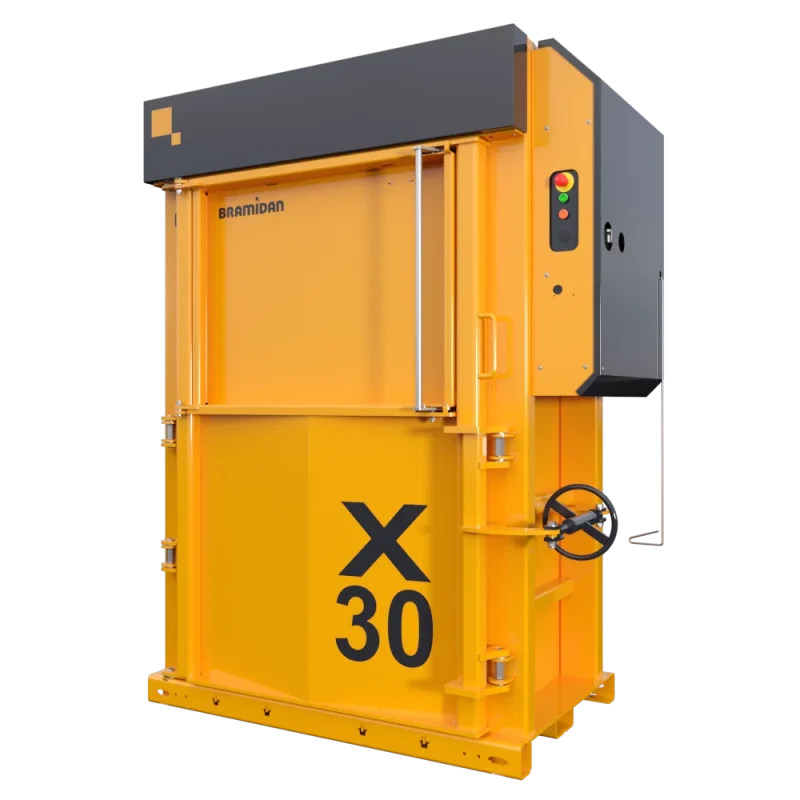

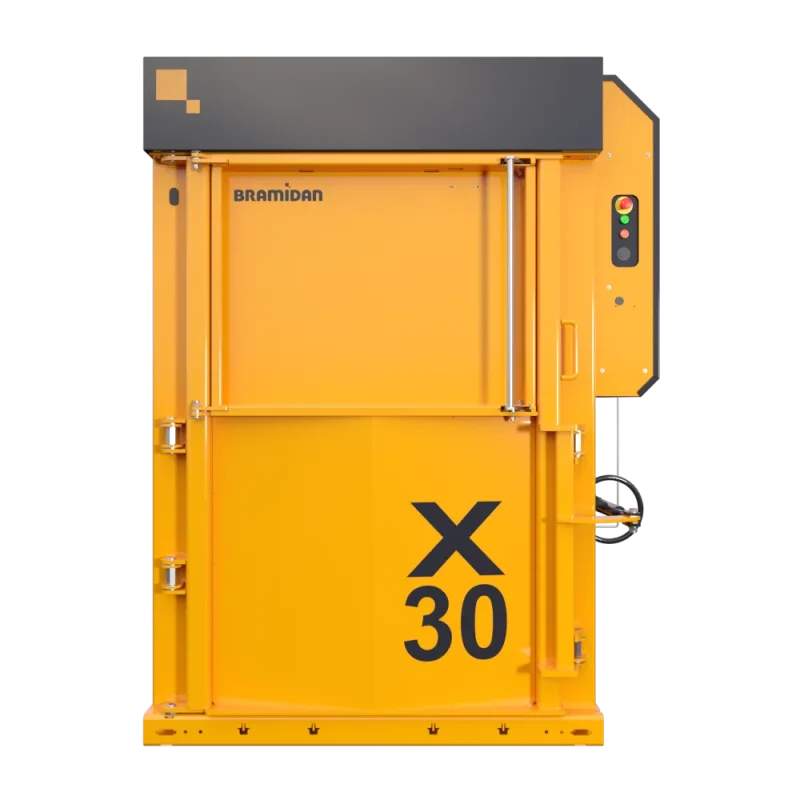

Baler X30
VERTICAL BALER
VERTICAL BALER
Handle space-consuming waste
The wide chamber and superior press force make the X30 suitable for handling large boxes and other space-consuming waste.
A baler for most types of material
Use this baler to compact most types of material including PET bottles, plastic jugs, aluminium cans, big bags, and expandable plastics.
X30 – Superior baler for large quantities of waste:
- Compacts very bulky material
- For most waste materials
- Retainers prevent compacted material from expansion in the chamber
- Optimal compaction no matter which material
- Powder Coating provides durable finish in many colors
Time-saving and easy waste handling
- Load your recyclables into vertical baler.
- A full-bale light tells you when the baler is full.
- Tie off and eject the compacted bale.
- Remove the bale with a pallet jack for storage untill collection.
| Bale weight cardboard (kg) | 275-350 |
| Bale weight plastic foil (kg) | 325-425 |
| Press force (t) | 30 |
| Power supply | 3x400V 50Hz 16A |
| Motor (kW) | 4.0 |
| Noise Level (dB) | 59-60 |
| Cycle time avg. (sec) | 25 |
| Dimensions WxDxH (mm) | 1760 x 1255 x 2295 |
| Weight (kg) | 1710 |
| Feed opening WxH (mm) | 1090 x 655 |
| Filling height (mm) | 1130 |
| Chamber height (mm) | 1675 |
| Stroke (mm) | 940 |
| Number of ties | 4 |
| Type of tying | Twine / Steel wire |
| Full bale light | Yes |
| Bale eject | Automatic |
| Waste volume | Medium |
Monitor and optimise with BRA-IN
With real-time data and automatic notifications, you can make better decisions, reduce operating costs, and document your environmental efforts.
BRA-IN stands for Bramidan Intelligence and connects your equipment directly to a user-friendly platform – so you can monitor fill levels, optimise collections, and schedule maintenance – all in one integrated solution.
Heading for loop
A vertical baler is a machine that uses extreme force to compress loose waste material into a tight bundle, or bale. You place your loose cardboard or soft plastic waste into the baler via the filling opening. Inside the machine, a strong press plate pushes the material downwards. Retainers in the chamber prevent the material from expanding and keep the waste material down when not under pressure. This makes the bale as compact and tight as possible. You continuously place waste in the baler until you have accumulated enough compacted waste to make a bale. The bale is tied of manually by wire or plastic strapping. Bales come in different sizes and weights depending on the size of your baler.
A baler enables you to sort your waste directly at the source; and bales are easy to handle and take up little space. They also make transportation and waste disposal convenient and easy. We offer a wide range of baler designs to choose from to suit your individual needs in terms of waste type, volume, size and ease of use. Our specialists are ready to advise you on the type of baler that will best suit the needs of your business. Please contact a member of our team for further information.
We have our BRA-IN solution. A web portal for intelligent fleet monitoring based on data collected from a modem in your baler or compactor.
With BRA-IN you can:
- Get in control of your fleet of machines
- Receive a text message or email when a baler is full
- Advise your recycler directly about bales ready for collection or container to be emptied
- Tracking of the number of bales you produce over time
- Save time and money with remote service and troubleshooting
- Calculate on your Total Cost of Ownership
