VERTICAL BALER
Baler B50 XL SD
A baler with an extra wide and deep chamber 182 x 110 cm. Bale size is optimized for transportation by truck. You can stack bales 2 and 2 for optimal truckloads.
Colour
RAL 1007
RAL 3016
RAL 5002
RAL 5017
RAL 5021
RAL 6018
RAL 6032
RAL 7015
RAL 7035
RAL 9003
*Bramidan yellow at no extra cost. Other colors can be ordered at an additional cost.
Add to your quote
VERTICAL BALER
Baler B50 XL SD

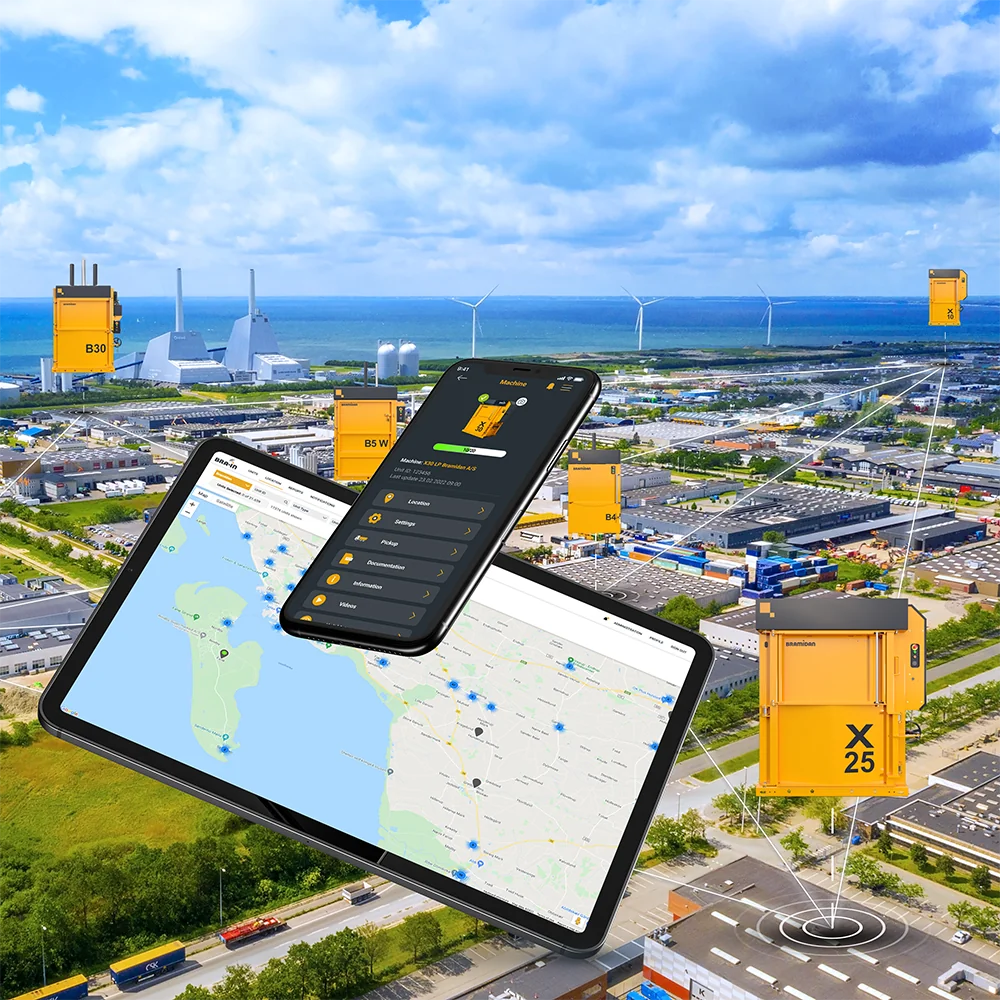

Equip your balers with an intelligent modem and get visualized baler location data. Plan the most effective bale collection or service route.
Use BRA-IN to optimize your baler logistics
Choose a new baler colour among any RAL colour. The grey coloured top and side hood, press plate, and spindle cannot be customized.
Balers in custom colours

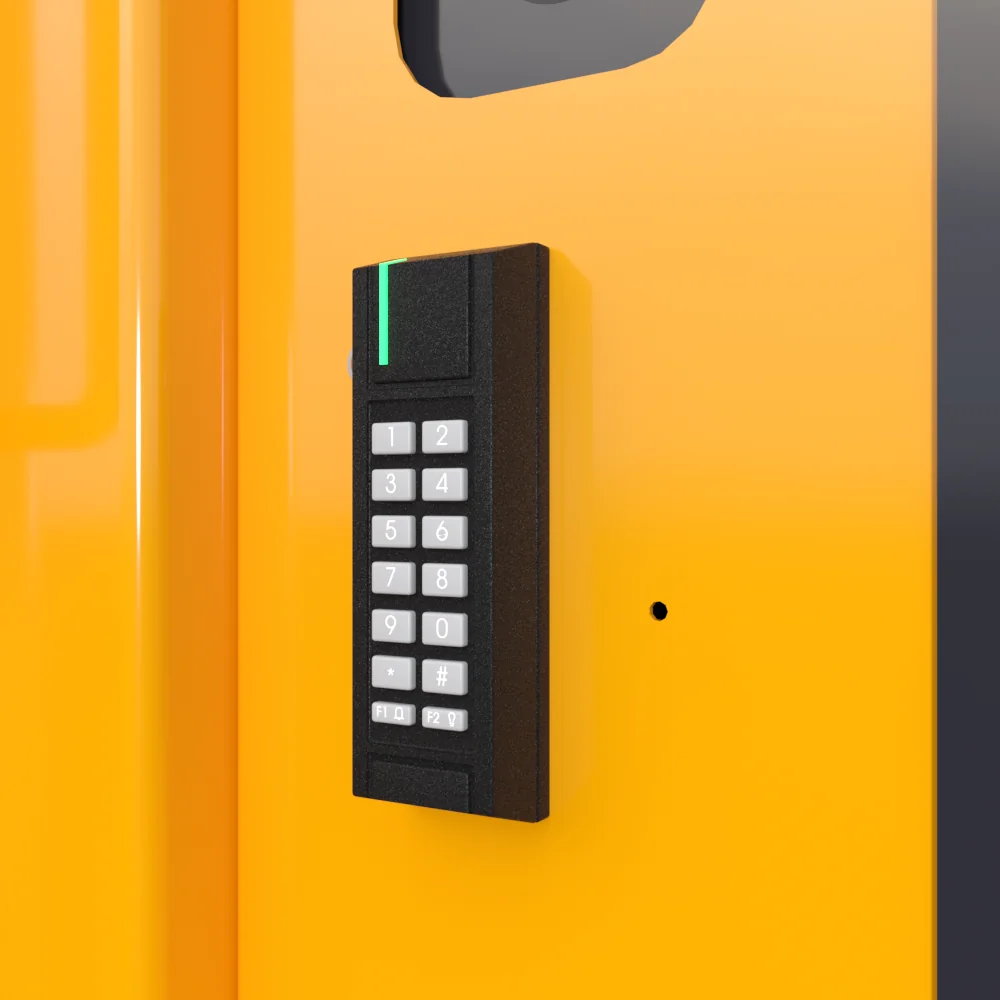

The auto lock lets you decide who can use your baler. Everyone can load it, but it requires a PIN code or a personal key tag to run press cycles.
Block access to baler controls with auto lock
Quote details

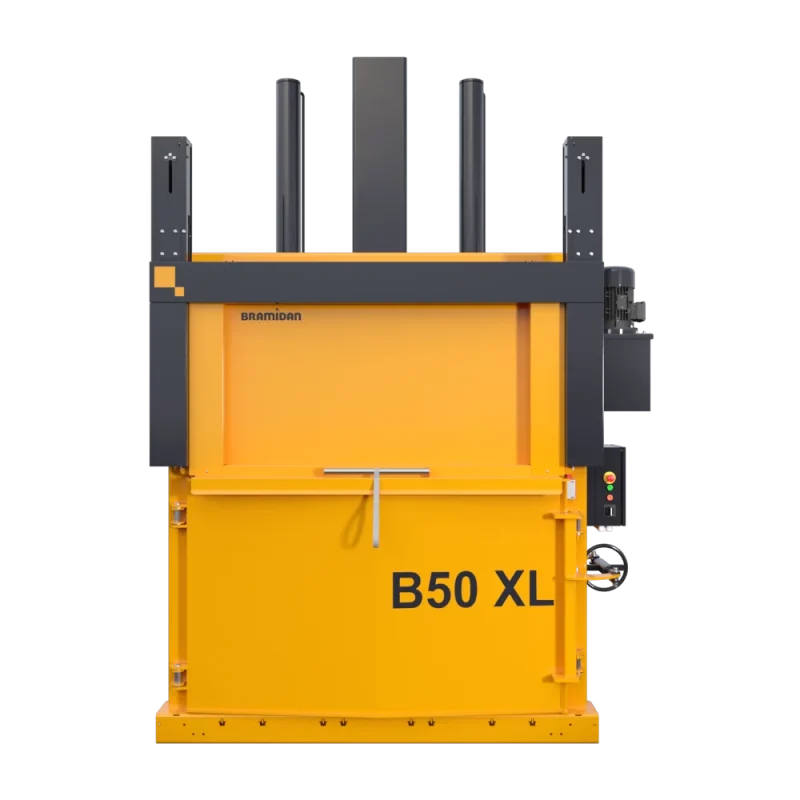

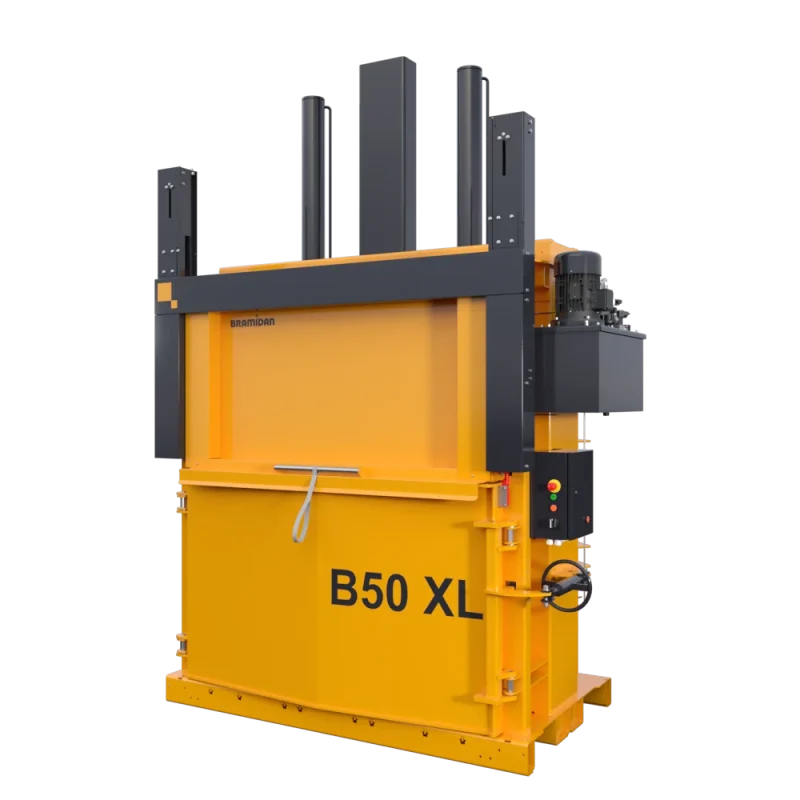

VERTICAL BALER
Baler B50 XL SD
Overview
How to operate
Safety
Technical specifications
Efficient and quick waste handling
Ideal for large amounts of materials. Due to the wide Sliding Door of 1.82 metres and deep chamber of 1.1 metres, there is no need to break down boxes before loading.
Optimised for truckloads
The compacted bales are optimised for transport because they can be stacked two and two instead of three and three.
B50 XL SD – bales optimized for transport:
- Extra-large chamber
- 8 wire tying for a more stable bale
- Standard with a Sliding Door that opens automatically
- Bales optimised for transport
- Compacted bales measure 1825 x 1066 x 1200-1300 mm
- Stack bales 2 and 2 instead of 3 to optimise a truck load
- Powder Coating provides durable finish in many colors
How does the B50 XL SD baler work?
Time-saving and easy waste handling
- Fill your plastic or cardboard waste into the baler.
- A full-light indicator tells you when the chamber is full.
- Tie off and eject the finished bale.
- Remove the bale and store until collection.
The B50 XL SD baler is safe and easy to operate:
Our machnies has the highestlevel of safety – don’t settle with less!
| Bale weight cardboard (kg) | 650-800 |
| Bale weight plastic foil (kg) | 650-800 |
| Press force (t) | 50 |
| Power supply | 3x400V 50Hz 16A |
| Motor (kW) | 5.5 |
| Noise Level (dB) | 62-64 |
| Cycle time avg. (sec) | 26 |
| Dimensions WxDxH (mm) | 2515 x 1645 x 3590 / 2495 |
| Weight (kg) | 3250 |
| Feed opening WxH (mm) | 1825 x 670 |
| Filling height (mm) | 1320 |
| Chamber height (mm) | 1830 |
| Stroke (mm) | 1100 |
| Number of ties | 8 |
| Type of tying | Twine / Steel wire |
| Full bale light | Yes |
| Bale eject | Automatic |
| Waste volume | Large |
Waste types
Waste Volume
Large
FEED OPENING
1825 x 670 mm
BALE SIZE
1850 x 1100 x 1200-1300 mm
PRESS FORCE
50 t
BALE WEIGHT
Cardboard (kg) : 650-800Plastic foil (kg) : 650-800
Get your machine a BRA-IN
Turn your waste data into real operational savings and effective workflows
BRA-IN is a digital mangement system for your balers and compactors that turns waste data into value. It gives you a simple but effective online overview of machine status, performance and service needs.
With real-time insights, automatic notifications and remote service, BRA-IN helps you optimise collections, reduce downtime and lower operating costs.
Heading for loop
Our quiet machines mean a safer working environment
Most balers operate at a noise level of around 70-80 dB.
Bramidan balers are a much quieter alternative. To put this into perspective, a 10 dB reduction makes a significant difference – comparable to moving from the noise of a busy street to the calm of a quiet office. A lower noise level plays a crucial role in creating a safer and more comfortable working environment.
30dB
50dB
75dB
100dB
160dB
B50 XL SD
62-64 dB
Whisper
Refrigerator
Other balers
Cars on highway
Turbojet engine
FAQ
VERTICAL BALER B50 XL SD
Most Common Questions & Answers
Is it possible to tie the bales with wires instead of polyester strapping?
Yes, both strapping and steel wires can be used to tie the bales. In our small machines, you can only use strapping.
What is the biggest difference between vertical and horizontal balers?
Vertical balers are compact, affordable, and ideal for manual operations and moderate volumes of waste such as cardboard and plastic. They compress material from top to bottom and take up minimal space, making them easy to install—especially for smaller businesses or sites with limited space.
Horizontal balers are built to manage larger quantities of waste and offer greater automation. They compress from the side and can be combined with conveyors, shredders, and other automated systems, reducing manual labour and improving operational efficiency. However, they require more space and a higher investment.
How much noise does a baler make?
Our balers are generally very silent. They can be placed directly in the working environment without any negative affect.
The noise level of our B-series balers is very low. They never exceed 57-68 decibels – the equivalent of an air conditioning system or a vacuum cleaner.
However, for whisper low noise level, try our range of X-series balers. They have extra low noise level that never exceeds 59 decibels. The same as conversational speech.
Can your machine weigh the bales for me?
Our machines do not have a built-in scale. However, the bale size and bale weight do not fluctuate a lot and will typically always be the same.
Additionally, we offer our BRA-IN monitoring solution, where you can access the bale production of your baler and create reports for recycling compliance. That way you know how big and how many bales you produce every week or month.
Is the surface of your balers durable?
All our machines are treated with a high quality, anti-rust coating to strengthen and protect the surfaces and prevent flaky paint and rust.
Do you supply vertical balers that achieve minimum 400 kilo bales?
Our Large Size Balers – models B30 Wide, B50, X50 and B50 XL – produce bales that can reach 400 kilos depending on your waste material.
