VERTICAL BALER
Baler B4 Textile
A specially developed baler for textiles and clothes. The chamber is designed without retainers to protect clothes from ripping.
Colour
RAL 1007
RAL 3016
RAL 5002
RAL 5017
RAL 5021
RAL 6018
RAL 6032
RAL 7015
RAL 7035
RAL 9003
*Bramidan yellow at no extra cost. Other colors can be ordered at an additional cost.
Add to your quote
VERTICAL BALER
Baler B4 Textile
Monitor your balers and collect baler performance data with BRA-IN. Use the data to stay in control of exact bale production, fill level, baler location, and service needs.
Collect data on your balers with BRA-IN
Have your baler painted in a RAL colour of your choice. Machine hood, press plate, and spindle are exempted from custom colouring.
Personalize your baler with custom colour

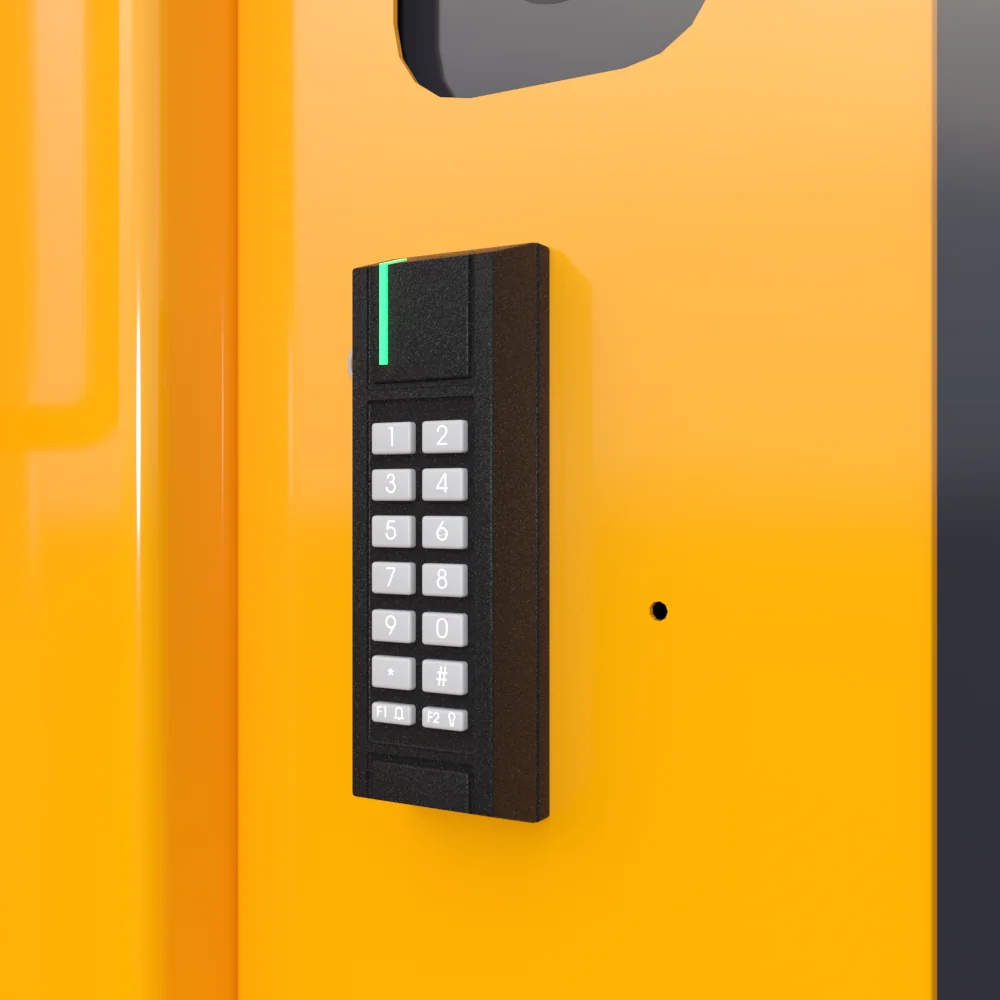

Prevent unauthorized people from operating your baler. The baler is unlocked with a personal PIN code or a magnetic key tag.
Control who operates your baler with an auto lock
Quote details
VERTICAL BALER
Baler B4 Textile
Overview
How to operate
Safety
Technical specifications
Specially for textiles
For compacting clothes, our B4 Textile is ideal. Specially designed without retainers in the chamber to protect the clothes.
Small manageable bales
This baler makes small manageable bales that are easy to transport and stack.
B4 Textile – Special baler for clothes and textile:
- No retainers inside the chamber
- Protects the clothes from ripping
- Compacted bales measure just 70 x 50 x 35-65 cm
- Bales are easy to transport and stack
- A mounted knife makes it easy to cut the straps
- Automatic prevention of chamber overload
- Powder Coating provides durable finish in many colors
How does the B4 Textile baler work?
Time-saving and easy waste handling
- Load your recyclables into vertical baler.
- A full-bale light tells you when the baler is full.
- Tie off and eject the compacted bale.
- Remove the bale with a pallet jack for storage untill collection.
The B4 Textile baler is safe and easy to operate
Our equipment has the highest level of safety – don’t settle with less!
| Bale weight textile (kg) | 25-80 |
| Press force (t) | 4 |
| Power supply | 1x230V 50Hz 10A |
| Motor (kW) | 1.5 |
| Noise Level (dB) | 60-65 |
| Cycle time avg. (sec) | 28 |
| Dimensions WxDxH (mm) | 975 x 715 x 1985 |
| Weight (kg) | 300 kg |
| Feed opening WxH (mm) | 770 x 460 |
| Filling height (mm) | 645 |
| Chamber height (mm) | 1000 |
| Stroke (mm) | 650 |
| Number of ties | 2 |
| Type of tying | Twine |
| Full bale light | Yes |
| Bale eject | Automatic |
| Waste volume | Small |
Waste types
Waste Volume
Small
FEED OPENING
770 x 460 mm
BALE SIZE
770 x 500 x 600 mm
PRESS FORCE
4 t
Get your machine a BRA-IN
Turn your waste data into real operational savings and effective workflows
BRA-IN is a digital mangement system for your balers and compactors that turns waste data into value. It gives you a simple but effective online overview of machine status, performance and service needs.
With real-time insights, automatic notifications and remote service, BRA-IN helps you optimise collections, reduce downtime and lower operating costs.
Heading for loop
Our quiet machines mean a safer working environment
Most balers operate at a noise level of around 70-80 dB.
Bramidan balers are a much quieter alternative. To put this into perspective, a 10 dB reduction makes a significant difference – comparable to moving from the noise of a busy street to the calm of a quiet office. A lower noise level plays a crucial role in creating a safer and more comfortable working environment.
30dB
50dB
75dB
100dB
160dB
B4 Textil
60-65 dB
Whisper
Refrigerator
Other balers
Cars on highway
Turbojet engine
FAQ
VERTICAL BALER B4 Textile
Most Common Questions & Answers
Can I get a baler that ties the bales automatically?
All our vertical balers require manual handling. Automatic bale tying is only available for our horizontal balers
Is a baler safe to operate?
Bramidan balers are very safe to operate. The safety around our solutions meets the highest standard. Our machines comply with the highest European safety standard, EN16500.All moving parts are placed inside the machine to protect the user. To eject the finished bale the operator uses a two-hand ejection system, standing safely next to the machine.
Where should I install my machine?
Your internal work processes, the waste flow in your company and the available data on your current waste handling will help determine the best place to install your machine. What’s important is that you place the baler so that you can sort and compact your waste at the waste source.Our sales consultants can help you with finding the best location for your baler.
How do I know when the baler is full?
A full chamber indicator blinks when the baler is full. It is a small orange light placed just under the start button. Furthermore, the press plate will stay down on the bale and prevent you from putting more waste into the baler when it is full.
You can also add a BRA-IN monitoring solution to your machine and be advised automatically when the baler is full. You receive an email or text message when a bale is ready to be tied off and ejected. With a BRA-IN solution your waste collector can be advised when the agreed number of bales are ready for pick-up.Read more about the benefits of the Bramidan Intelligent Monitoring Solution, which we call BRA-IN.
How much noise does a baler make?
Our balers are generally very silent. They can be placed directly in the working environment without any negative affect.The noise level of our B-series balers is very low. They never exceed 57-68 decibels – the equivalent of an air conditioning system or a vacuum cleaner.However, for whisper low noise level, try our range of X-series balers. They have extra low noise level that never exceeds 59 decibels. The same as conversational speech.
How many bales can I produce per hour?
Number of bales produced per hour depends on the baler. You can produce 3-4 bales for small machines, but less than 2 bales per hour for the large ones.
