VERTICAL BALER
Baler B30 Wide
For an extra easy-to-fill baler, choose this B30 Wide. You get a large filling opening and there is no need to fold even large cardboard boxes.
Colour
RAL 1007
RAL 3016
RAL 5002
RAL 5017
RAL 5021
RAL 6018
RAL 6032
RAL 7015
RAL 7035
RAL 9003
*Bramidan yellow at no extra cost. Other colors can be ordered at an additional cost.
Add to your quote
VERTICAL BALER
Baler B30 Wide
Monitor your balers and collect baler performance data with BRA-IN. Use the data to stay in control of exact bale production, fill level, baler location, and service needs.
Collect data on your balers with BRA-IN
Enjoy automatic door opening. The sliding door stays open by default, which makes it convenient to fill the baler. You close it manually.
Sliding door gives you hands-free door opening

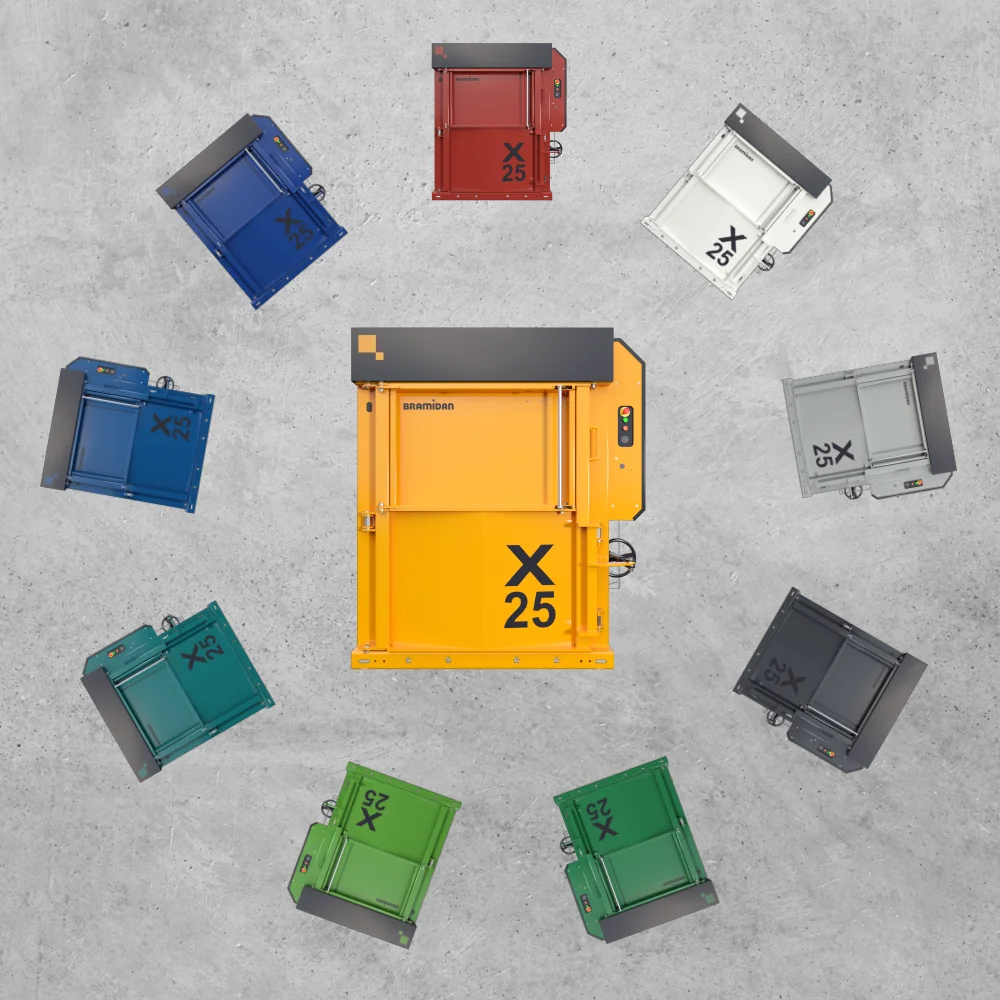

Have your baler painted in a RAL colour of your choice. Machine hood, press plate, and spindle are exempted from custom colouring.
Personalize your baler with custom colour
Enable baler loading but restrict access to run press cycles. Permission to run a press cycle is granted with a personal code or a key tag.
Restrict who can use your baler with an auto lock
Remove loads of cardboard boxes or plastic waste in no time. Shorten the press cycle with a high-speed kit.
High speed cycle optimizes your work flow
Lift the baler from the ground for easy cleaning underneath or manoeuvring into a narrow space.
Baler feet lift your baler from the ground
Quote details
VERTICAL BALER
Baler B30 Wide
Overview
How to operate
Safety
Technical specifications
Baler for very large boxes
With an extra wide chamber of more than 1.5 metres, this machine handles even the largest boxes.
High compaction ratio
The pressure is maintained on the bale while you tie it. This gives you a highly compact and stable cardboard or plastic bale.
B30 Wide – Extra large filling opening:
- Extra wide chamber (>1,5 metre)
- For even the largest boxes
- Use either plastic straps or metal wire
- Notification when chamber is full
- Bale is ejected automatically
- Produces large cardboard bales of minimum 400 kilos
- Powder Coating provides durable finish in many colors
How does the B30 Wide baler work?
Time-saving and easy waste handling
- Fill your plastic or cardboard waste into the baler.
- A full-light indicator tells you when the chamber is full.
- Tie off and eject the finished bale.
- Remove the bale and store until collection.
The B30 Wide baler is safe and easy to operate:
Our machnies has the highestlevel of safety – don’t settle with less!
| Bale weight cardboard (kg) | 400-500 |
| Bale weight plastic foil (kg) | 400-600 |
| Press force (t) | 30 |
| Power supply | 3x400V 50Hz 16A |
| Motor (kW) | 4.0 |
| Noise Level (dB) | 62-64 |
| Cycle time avg. (sec) | 43 |
| Dimensions WxDxH (mm) | 2080 x 1270 x 3350 |
| Weight (kg) | 1800 |
| Feed opening WxH (mm) | 1525 x 560 |
| Filling height (mm) | 1260 |
| Chamber height (mm) | 1680 |
| Stroke (mm) | 1000 |
| Number of ties | 6 |
| Type of tying | Twine / Steel wire |
| Full bale light | Yes |
| Bale eject | Automatic |
| Waste volume | Large |
Waste types
Waste Volume
Large
FEED OPENING
1525 x 560 mm
BALE SIZE
1550 x 800 x 1100 mm
PRESS FORCE
30 t
BALE WEIGHT
Cardboard (kg) : 400-500
Plastic foil (kg) : 400-600
Get your machine a BRA-IN
Turn your waste data into real operational savings and effective workflows
BRA-IN is a digital mangement system for your balers and compactors that turns waste data into value. It gives you a simple but effective online overview of machine status, performance and service needs.
With real-time insights, automatic notifications and remote service, BRA-IN helps you optimise collections, reduce downtime and lower operating costs.
Heading for loop
Our quiet machines mean a safer working environment
Most balers operate at a noise level of around 70-80 dB.
Bramidan balers are a much quieter alternative. To put this into perspective, a 10 dB reduction makes a significant difference – comparable to moving from the noise of a busy street to the calm of a quiet office. A lower noise level plays a crucial role in creating a safer and more comfortable working environment.
30dB
50dB
75dB
100dB
160dB
B30 Wide
62-64 dB
Whisper
Refrigerator
Other balers
Cars on highway
Turbojet engine
FAQ
VERTICAL BALER B30 Wide
Most Common Questions & Answers
Should I place my baler indoors or outdoors?
The baler should preferably be placed indoors. In some cases, it may also be placed outside under a roof, in regions where the general weather conditions are not too cold and rainy.Be aware that consistently cold surroundings can affect the machine’s performance. If you want to place the baler in a place that is very cold, e.g. a freezer room, potential problems with machine performance can be rectified with a special hydraulic oil.Please consult with our sales team if you want to place the machine outside or somewhere cold.
Do I need a baler or a compactor?
What type of waste handling equipment you need depends on different factors: How much waste you gather on a daily basis, but also the type and size of it. You also have to consider how much space you have for a waste solution.This information, combined with your company’s structure and internal work processes, forms the basis for which tailored waste solution is the perfect fit for you and your company.
Our sales consultants can help you with the right decision.
How much noise does a baler make?
Our balers are generally very silent. They can be placed directly in the working environment without any negative affect.The noise level of our B-series balers is very low. They never exceed 57-68 decibels – the equivalent of an air conditioning system or a vacuum cleaner.However, for whisper low noise level, try our range of X-series balers. They have extra low noise level that never exceeds 59 decibels. The same as conversational speech.
Do you have a baler that can handle wide boxes from TVs?
Don’t worry. Most of our balers can effortlessly handle boxes from 60” widescreen TVs.Our widest baler, the B30 Wide and X40 Wide, can even handle empty packaging from 65” widescreen TVs, and you need not break down the boxes first. Look for the dimensions of the filling openings of each baler under the product specifications.
Do you supply vertical balers that achieve minimum 400 kilo bales?
Our Large Size Balers – models B30 Wide, B50, X50 and B50 XL – produce bales that can reach 400 kilos depending on your waste material.
Who will buy my bales?
Contact your local recycler who may collect and buy your stored cardboard and plastic bales.
Did you find an answer to your questions? If not visit our FAQ universe.
